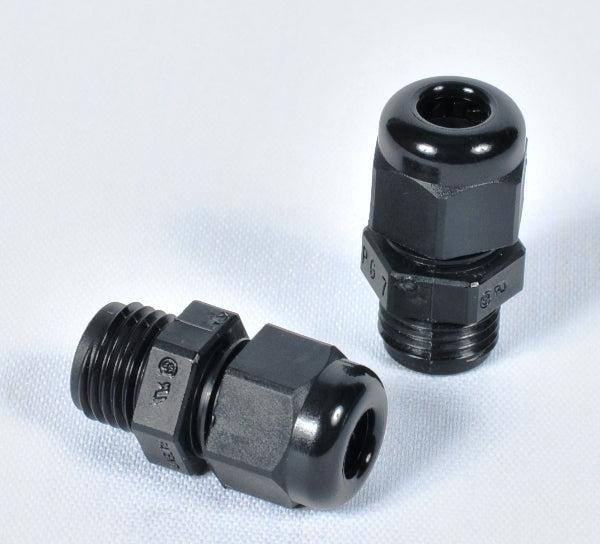

Water Tight Fittings
Water Tight Fittings
Couldn't load pickup availability
These water tight fittings are engineered for 1/4″ hydraulic tubing, providing a secure, leak-free pass-through for transom installations. The robust design ensures reliable performance in demanding marine or hydraulic environments.
Installation is straightforward: drill two 7/16″ holes, tap with a 1/2-20 thread, apply silicone to the threads, and screw the fitting into place. Slide the tubing through to the desired length and lock the outer nut for a permanent, watertight seal.
Key Features
| Product Type | Water Tight Fitting |
| Compatible Tubing Size | 1/4″ |
| Thread Size | 1/2-20 |
| Required Drill Hole Diameter | 7/16″ |
| Material | Metal |
| Application | Transom or Transom Adaptor |
How to use
Drill two 7/16″ diameter holes in your transom or transom adaptor. Tap the holes with a 1/2-20 tap. Apply silicone to the threads of the fitting and screw it into the threaded holes. Slide the 1/4″ hydraulic tubing through the fitting, set it to the desired length, and lock the outer nut to secure.
